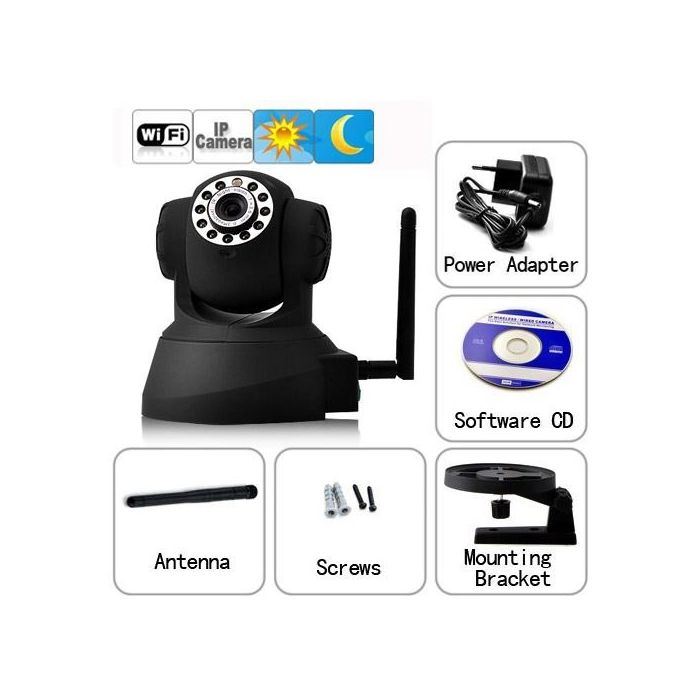

• Primary function: IP security camera with IR filter and motion detection recording • Color: black • Image compression format: M-JPEG standard • Image resolution: VGA (640x480), QVGA (320x240) • Sensor: CMOS 1/4 inch, 300000 pixels • Horizontal rotating angle: 0-270 degrees • Vertical rotating angle: 0-120 degrees • Brightness adjustment: automatic (can be used outdoor) • Alarm mode: motion detection/alarm and I/O alarm • Video display: Microsoft media player • Image display: single/quad • Image transfer velocity: 30fps (QVGA), 25fps (VGA) • Audio input/output: bidirection audio • Minimum illumination: 0 LUX • Video format: AVI • Network interface: RJ-45/10-100 Base T 802.11b/g • Network protocol: TCP/IP, DHCP, SMTP, TP, DDNS, UPNP, PPPoE • Alarm control - Output: 1 channel (5V DC, 0.1A) - Input: 1 channel (closed trigger) • Motion detection support: Yes • Monitoring mode: IE, Firefox and Google browsers • Software upgrade: automatic • Security: user management system, password protection, password setting, administer, monitor, scrutiny • White balance: automatic • Working Temperature: 0 - 50 degrees, 20-80% PH • Power adapter: AC 220-110V, 50-60Hz, DC 5V, 2A • Power consumption: 3W • System requirement: CPU from 2.0GHz • Memory: from 256M • Network card: from 10M • Display card: yes • UPNP and automatic port mapping: yes • QVGA, VGA and max rate frame: yes • PT speed adjustable function: yes • Max set up 8 PTZ preset position: yes • Multi-user remote access at the same time: yes • FTP and email alarm: yes • IR distance: 5-12 meters • Mobile phone browsing: yes • Both LAN and WAN viewing: yes • Real-time video capture and recording: yes • One channel external alarms input/output: yes • DynDNS.org & Oray.net free DNS service: yes Main Screen Software Controls & Displays • Viewing and recording (visitor)
